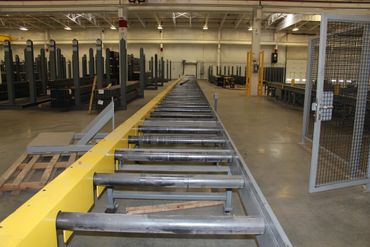

Powered Roller tables are typically built with variable speed electric drives and a joystick control. The drive chain is wrapped roller-to-roller and covered by removable formed chain guards. Besides offering custom frame and roller sizes, we offer custom preference on drives, clutches and more!


Construstion of Table

  •   Main Frame: Structural Steel
    • C6 X 8.2  @ 10k lbs/5' capacity
    • C8 X 11.5 @ 13k lbs/5' capacity
    • C10 X 15.3 @ 15k lbs/5' capacity
    • Custom
  • Legs: Structural Tubing
    • 2 X 4 X 1/4"
    • 1-1/4” Jack Bolts used for leveling

Rollers within Table

  •  3.5" Roller
    • 0.300 Wall
    • 1-1/16 Hex Roller Shaft
    • Bearing Weight: 1300 lbs/each
    • Roller Capacity: 2500 lbs/each
  • 4.0" Roller
    • 0.500 Wall
    • 1-7/16 Hex Roller Shaft
    • Bearing Weight: 3300 lbs/each
    • Roller Capacity: 6000 lbs/each
  • 5.0" Roller
    • 0.750 Wall
    • 1-7/16 Hex Roller Shaft
    • Bearing Weight: 4000 lbs/each
    • Roller Capacity: 7500 lbs/each
  • Roller Location
    • High or Low
    • Flush to Frame

Power for Table

  • Gearing Motor
    • 1.5 HP - 15.0 HP
  • Variable Frequency Drive
    • MISUBISH D700 SENSORLESS: 1.5 HP - 15.0 HP
    • 240V or 480V 3Ø Power
  • Clutch
    • 1.500 Bore
    • 1.750 Bore
    • 1.937 Bore

Options

  • Forklift Accessible
  • Plated Between Rollers
  • Vertical Roller Stops or Rail
  • Chain Guards
  • Drip Pan Under Table
  • Custom Control Cabinet
  • Attached Staging Tables
